Vsmile Milling Burs Imes-icores ® Compatible
Always Choosing The Best Tools for the Best Results
FOR EACH TYPE OF DENTAL MILLING MACHINE AND MATERIAL SUITABLE TOOL
For each type of machine and every dental material specifically developed and tested milling tools with the best features. The router is the contact point between the dental milling machine and to be milled material and thus crucial. The interface characteristics of the cutter and the cutting speed of the machine must be precisely matched to achieve a high quality result. We have made it our task, with the tools to optimize them for the milling strategies in coordination so that you get the highest level of quality.
All cutters and grinders are available in 3mm and 6mm shank design.
We have expanded our already very extensive range of tools and offer immediately following dental milling tools:

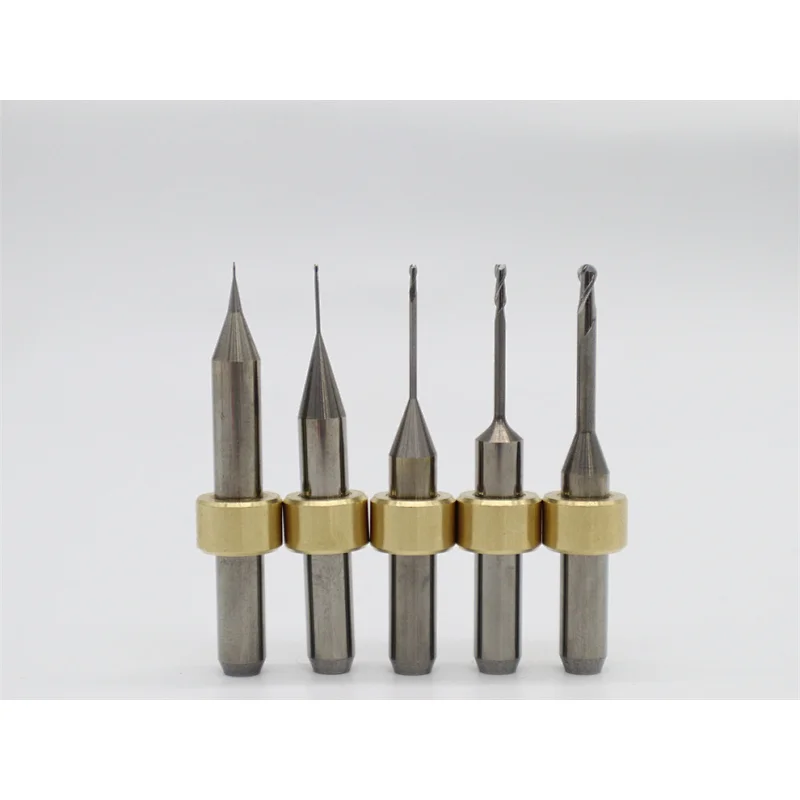

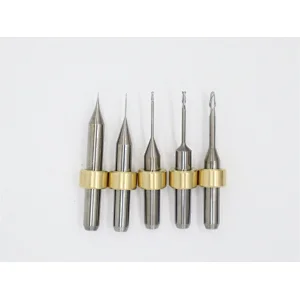

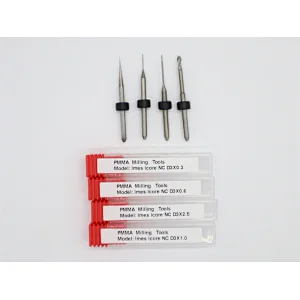

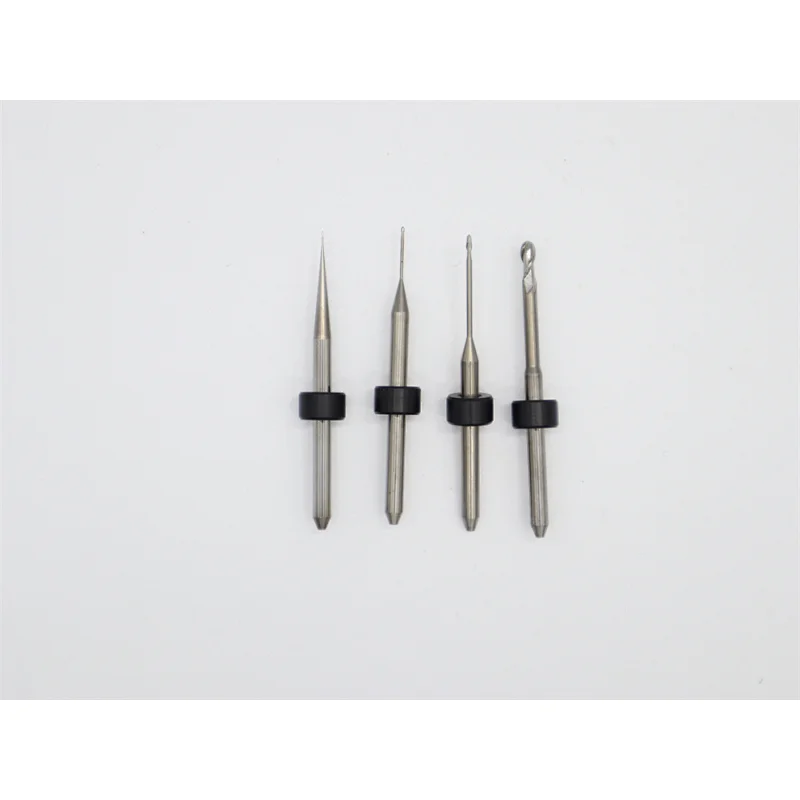

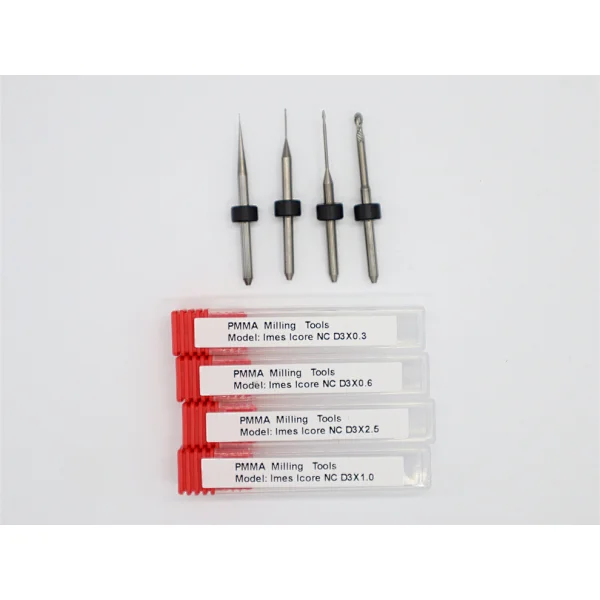

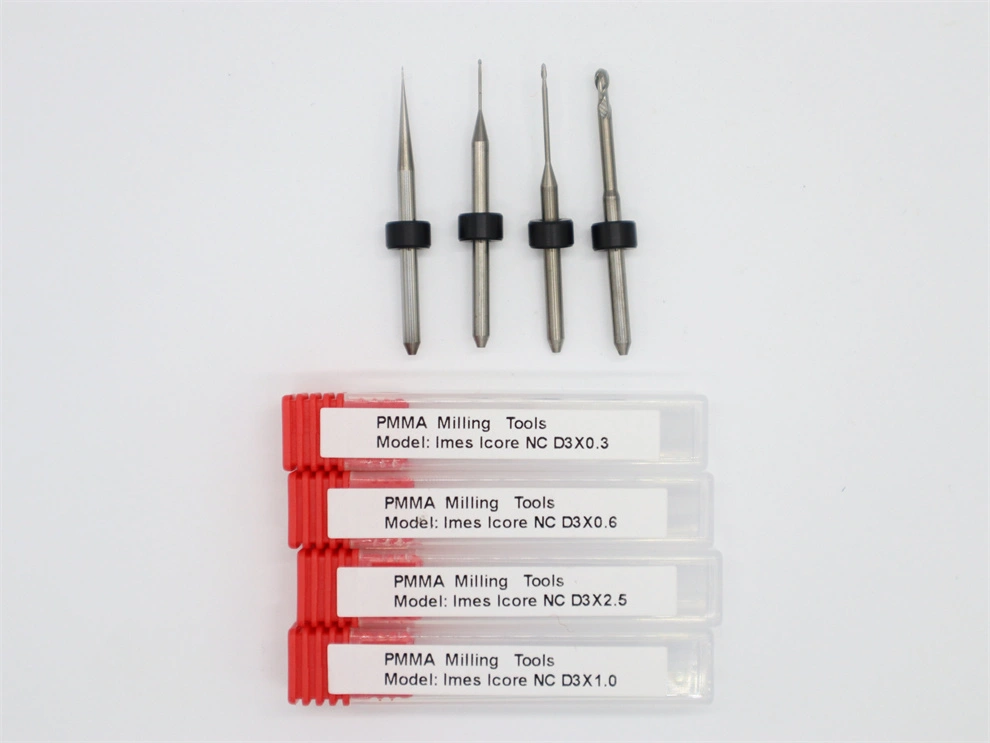

Imes-icores CAD/CAM Dental Milling Bur
Model:
imes icores ® Coritec one,150i,250i,350i,450i
imes icores ® Coritec 350i 450i(do) 650i.
Material: Tungsten Steel
Coating: CVD Diamond Coating / PVD Diamond Coating / Diamond Liked Coating / Professional Coating for Emax grinding
Packaging: Individually packing
Depending on the application and the sort of dental material, the radius cutters have one to four cutting edges: for PMMA and wax, there are, for instance, extremely sharp single-tooth cutters available with a very low tendency to clog. On the other hand, the 2.5 mm cutters for the abrasive zirconia have three cutting edges and the CoCr cutters even have four in order to reduce the wear for each cutting edge and to ensure greater process reliability.
FOR EACH TYPE OF DENTAL MILLING MACHINE AND MATERIAL SUITABLE TOOL
For each type of machine and every dental material specifically developed and tested milling tools with the best features. The router is the contact point between the dental milling machine and to be milled material and thus crucial. The interface characteristics of the cutter and the cutting speed of the machine must be precisely matched to achieve a high quality result. We have made it our task, with the tools to optimize them for the milling strategies in coordination so that you get the highest level of quality.
All cutters and grinders are available in 3mm and 6mm shank design.
We have expanded our already very extensive range of tools and offer immediately following dental milling tools:
| For Zirconia / PMMA / Wax Milling | ||||
| Shank Dia.(mm) | 3.0 | 3.0 | 3.0 | 3.0 |
| Head Dia.(mm) | 2.5 | 1.0 | 0.6 | 0.3 |
| Overlength(mm) | 48 | 48 | 48 | 48 |
| Coating | Diamond/Diamond Liked/Uncoated/Rainbow | |||
| For Emax / Glass Ceramic / Lithium Disilicate Milling | ||||
| Shank Dia.(mm) | 3.0 | 3.0 | 3.0 | |
| Head Dia.(mm) | 2.5 | 1.0 | 0.6 | |
| Overlength(mm) | 45 | 45 | 45 | |
| For Zirconia / PMMA / Wax Milling | ||||
| Shank Dia.(mm) | 6.0 | 6.0 | 6.0 | 6.0 |
| Head Dia.(mm) | 2.5 | 1.0 | 0.6 | 0.3 |
| Overlength(mm) | 50 | 50 | 50 | 50 |
| Coating | Diamond/Diamond Liked/Uncoated/Rainbow | |||
| For Emax / Glass Ceramic / Lithium Disilicate Milling | ||||
| Shank Dia.(mm) | 6.0 | 6.0 | 6.0 | |
| Head Dia.(mm) | 2.5 | 1.0 | 0.6 | |
| Overlength(mm) | 41 | 41 | 41 | |
| Compatible With imes icores For Metal Milling | ||||
| Shank Dia.(mm) | 6.0 | 6.0 | 6.0 | |
| Head Dia.(mm) | 3.0/2.0/1.5/1.0 | 2.0/1.5/1.0 | 2.5/1.5 | |
| Overlength(mm) | 50 | 50 | 50 | |
| Head Shape | Ball End | Flat End | Drill Mill | |
Imes-icores CAD/CAM Dental Milling Bur
Model:
imes icores ® Coritec one,150i,250i,350i,450i
imes icores ® Coritec 350i 450i(do) 650i.
Material: Tungsten Steel
Coating: CVD Diamond Coating / PVD Diamond Coating / Diamond Liked Coating / Professional Coating for Emax grinding
Packaging: Individually packing
Radius cutters For imes icore
The dental radius cutter has a semicircular rounded tip. It is available with cutting-edge diameters of 0.3 mm to 2.5 mm. While the 2.5 mm tool is mainly used for efficient roughing, tools with a small diameter of 0.3 or 0.6 mm are mainly used for finely finishing or carving out fissures. Due to the especially long free grinding of these tools, undercuts can also be reached easily.Depending on the application and the sort of dental material, the radius cutters have one to four cutting edges: for PMMA and wax, there are, for instance, extremely sharp single-tooth cutters available with a very low tendency to clog. On the other hand, the 2.5 mm cutters for the abrasive zirconia have three cutting edges and the CoCr cutters even have four in order to reduce the wear for each cutting edge and to ensure greater process reliability.
Grinding tools For imes icore
For processing dental materials such as ceramics and composites, Vsmile offers torus and radius grinding tools with a diamond grit in different grain sizes. The two smaller torus grinding tools with their fine grain size are mainly used for drillings and abutments. The 2.5 mm grinding tools with their coarser grain size are used for roughing and the fine-grained radius grinding tools for the finishing process.
All milling tools are characterized by their good abrasion and break resistance and extremely long endurance. The diamond grit with its especially good binding to the shank avoids micro-cracks and reduces the sensitivity to thermal impact.
