Vsmile Milling Burs VHF ® Compatible
The choice of dental milling or grinding tools plays an important role in dental technology.
Because the tool is the decisive link between the dental milling machine and the material to be machined.
The Vsmile tool specialists research and develop together with laboratory users and material manufacturers in order to produce the best possible tool.
| For Zirconia / PMMA / Wax Milling |
| Shank Dia.(mm) | 3.0 | 3.0 | 3.0 | 3.0 |
| Head Dia.(mm) | 2.0 | 1.0 | 0.6 | 0.3 |
| Overlength(mm) | 35 | 35 | 35 | 35 |
| Coating | Diamond/Diamond Liked/Uncoated/Rainbow |
| For Emax / Glass Ceramic / Lithium Disilicate Milling |
| Shank Dia.(mm) | 3.0 | 3.0 | 3.0 | |
| Head Dia.(mm) | 2.5 | 1.0 | 0.6 | |
| Overlength(mm) | 35 | 35 | 35 | |
| For Zirconia / PMMA / Wax Milling |
| Shank Dia.(mm) | 3.0 | 3.0 | 3.0 | 3.0 |
| Head Dia.(mm) | 2.0 | 1.0 | 0.6 | 0.3 |
| Overlength(mm) | 40 | 40 | 40 | 40 |
| Coating | Diamond/Diamond Liked/Uncoated/Rainbow |

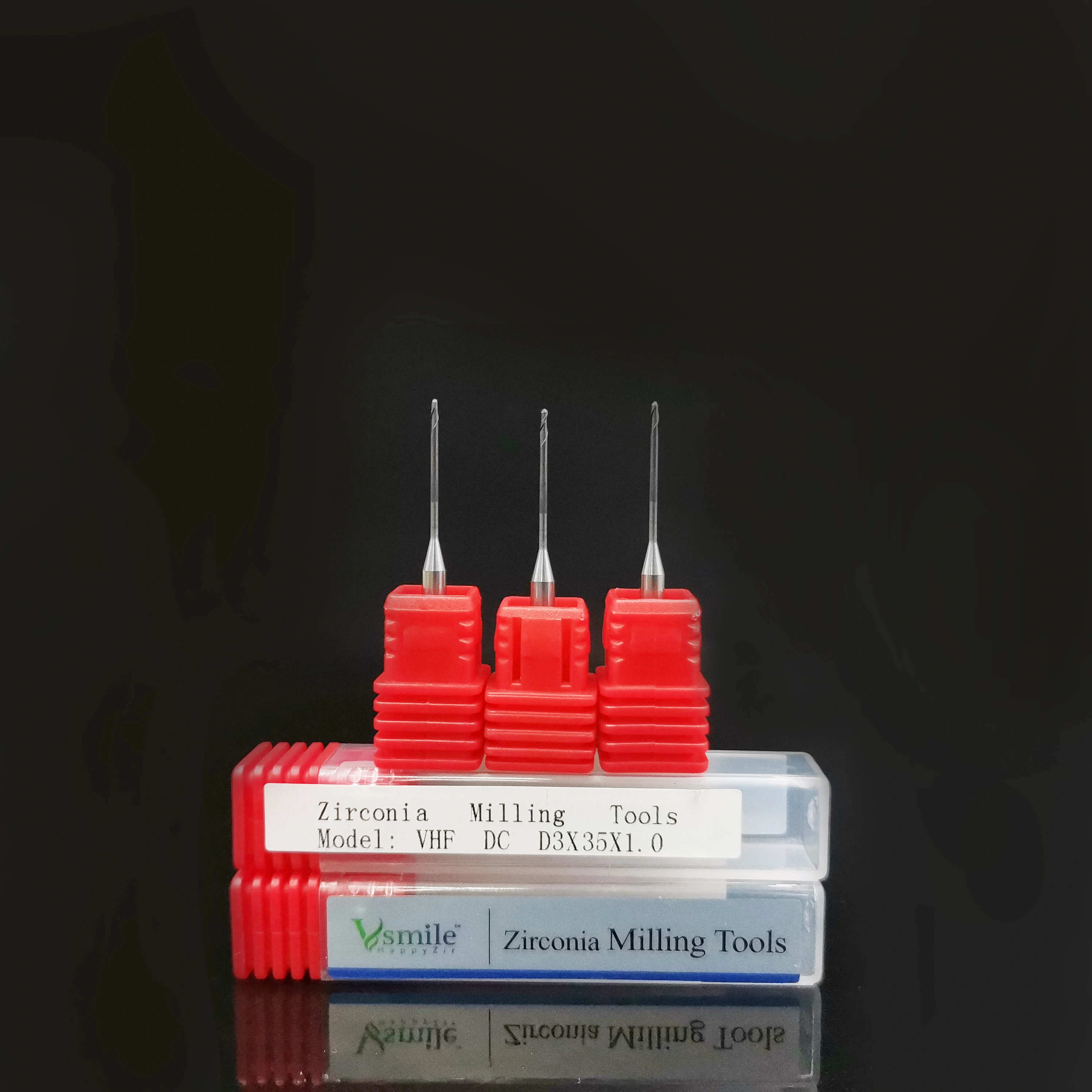

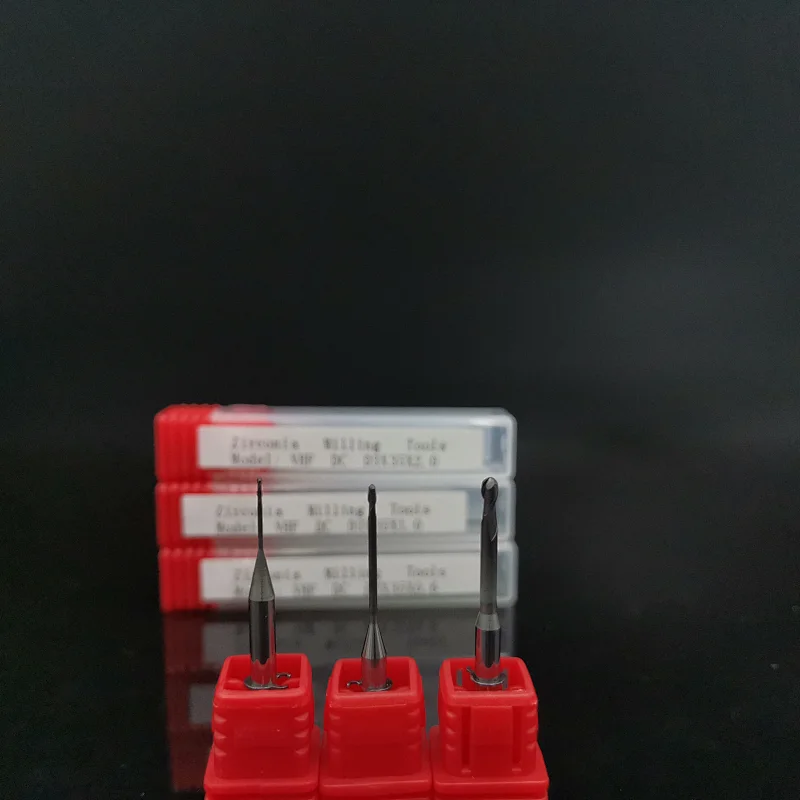

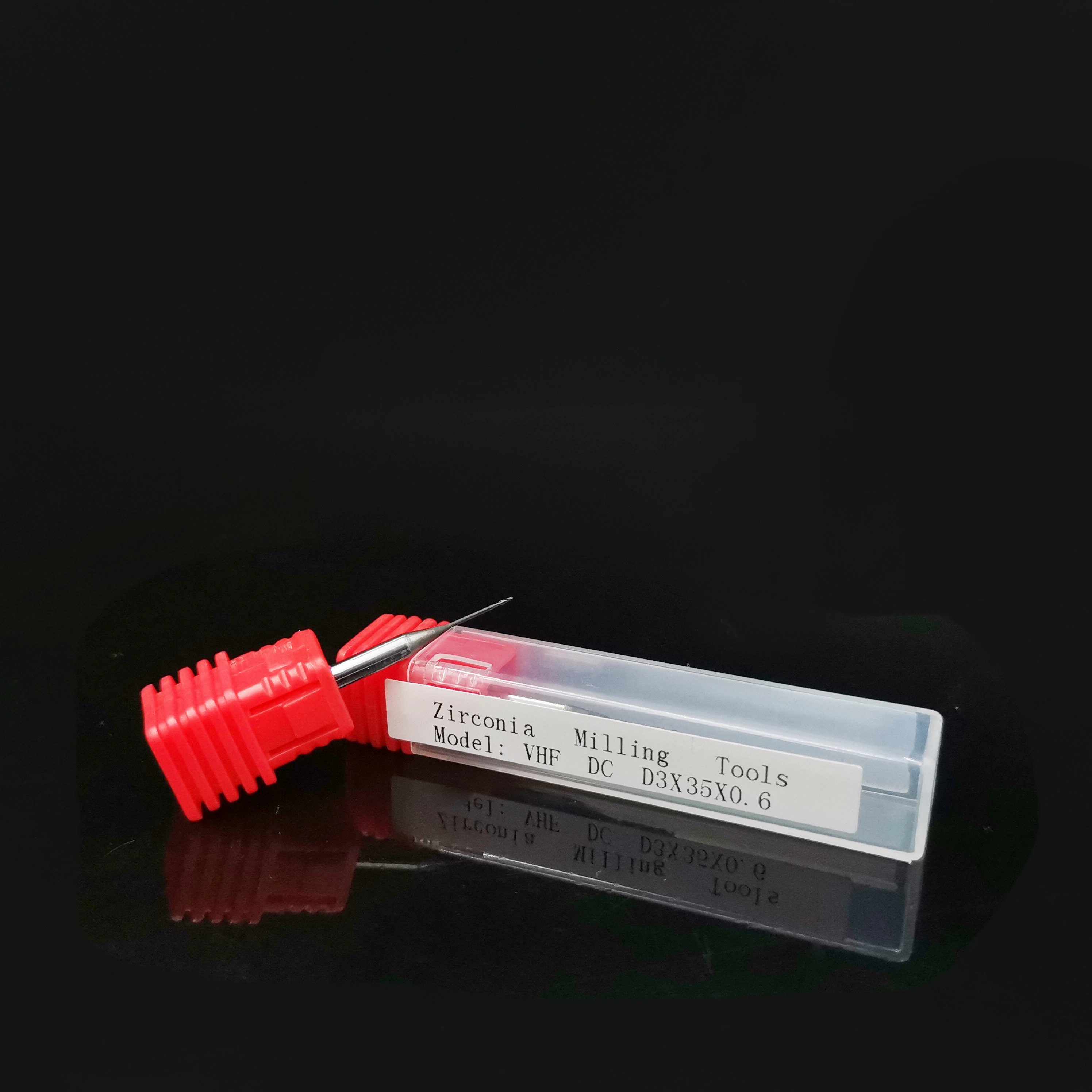

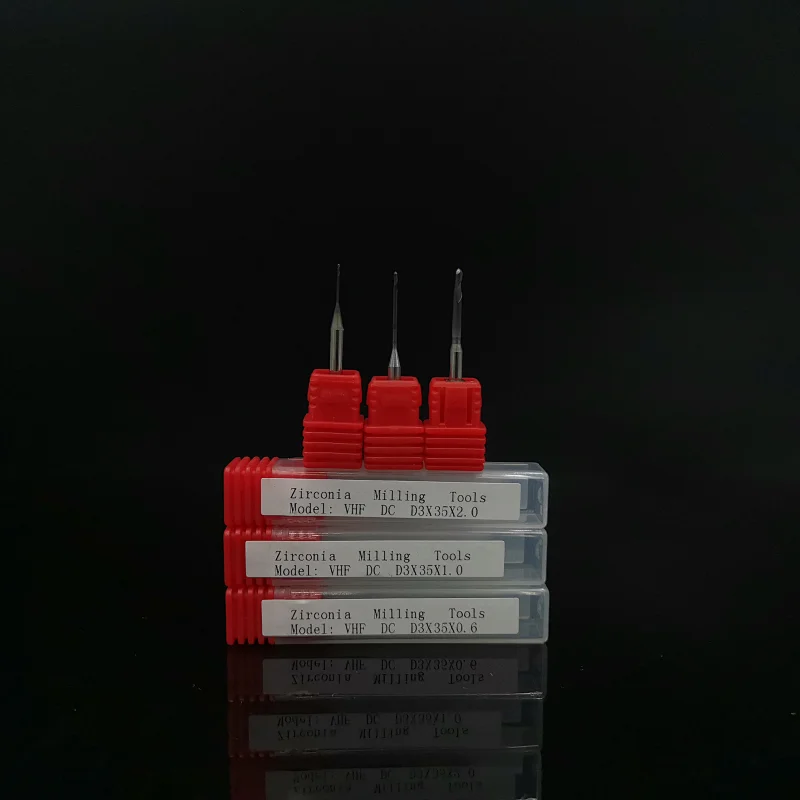

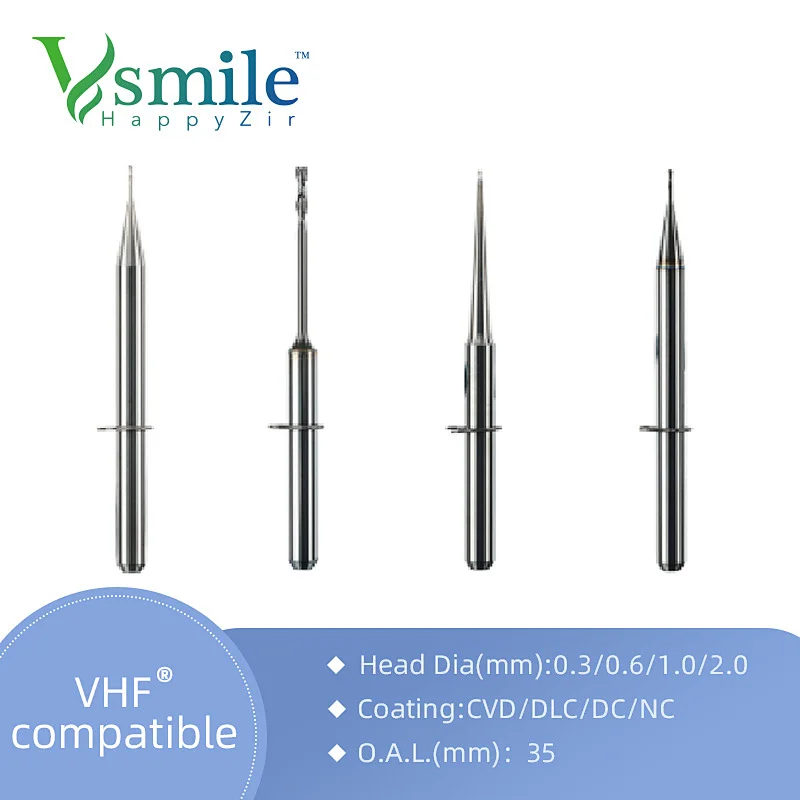

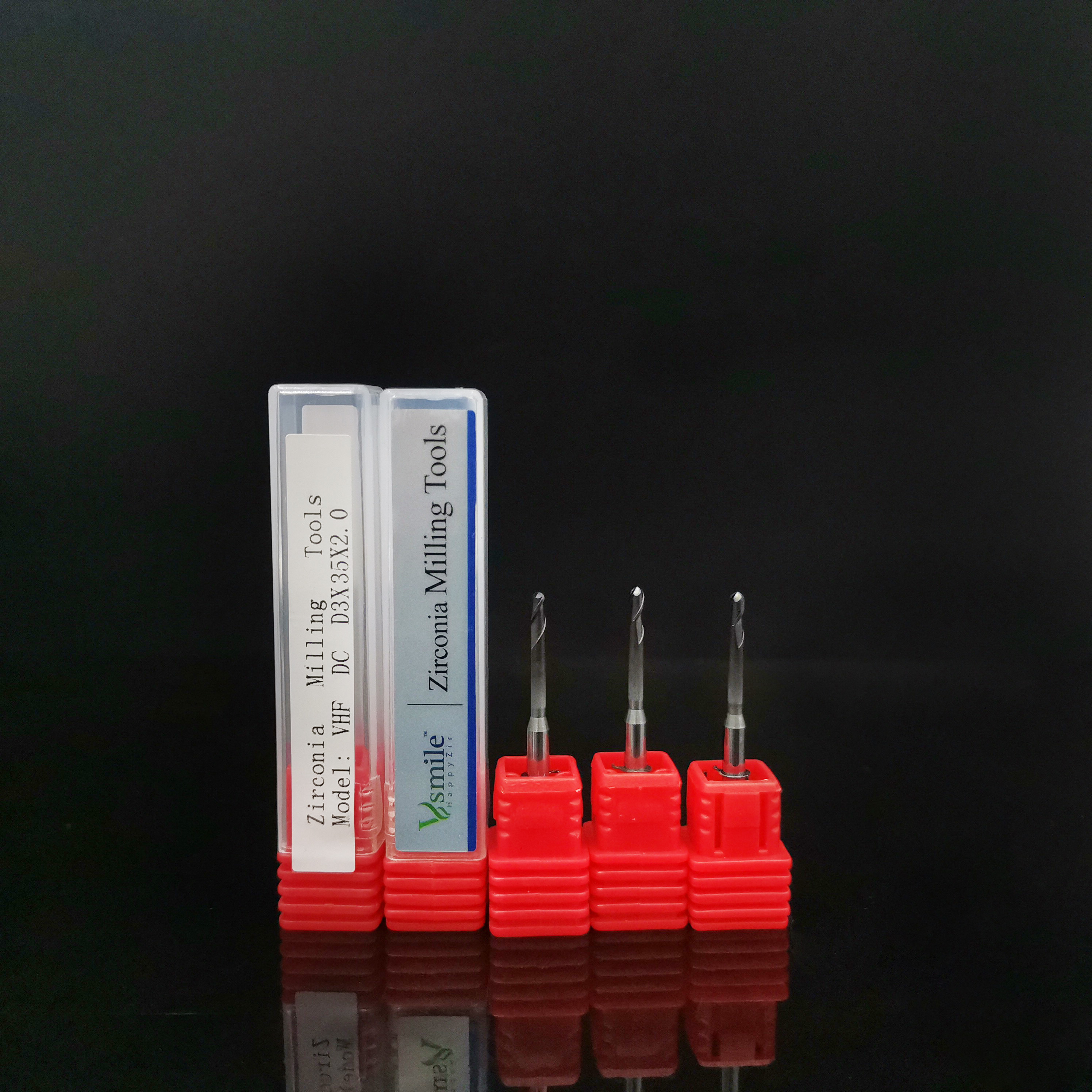

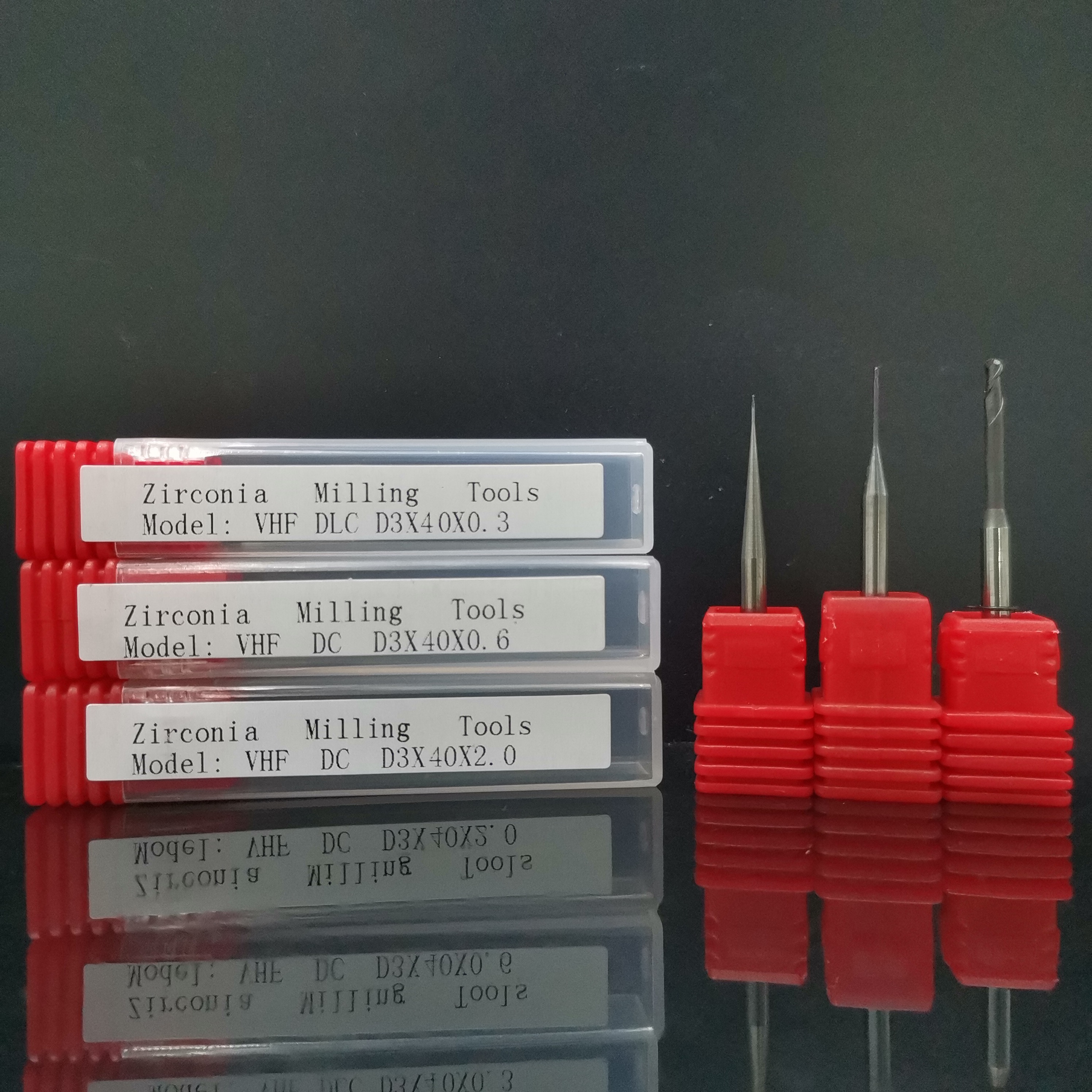

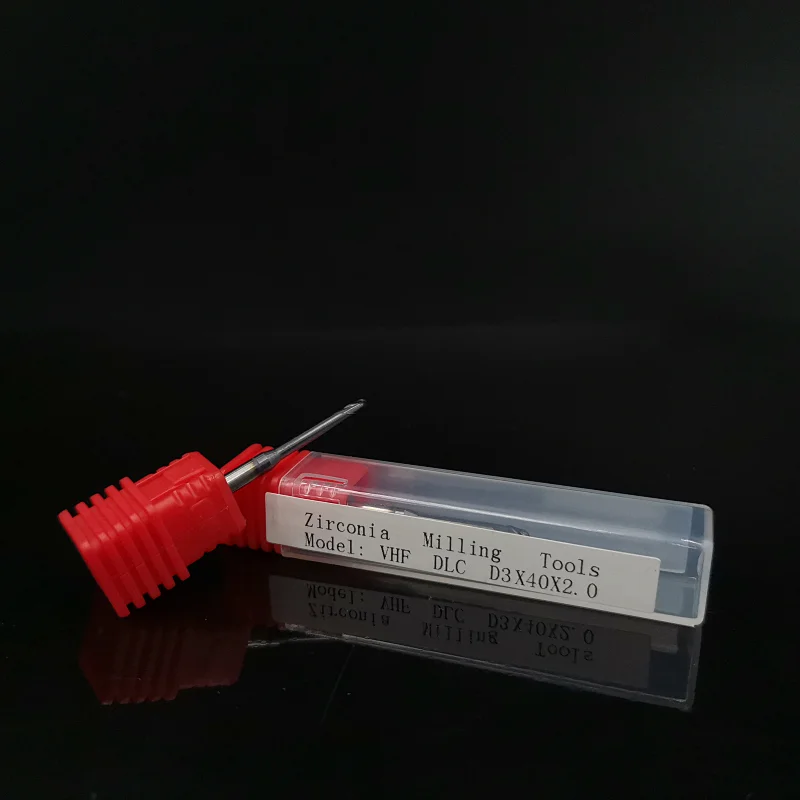

VHF CAD/CAM Dental Milling Bur
Model: VHF K1,VHF K3,VHF K4,VHF K5,VHF S1,VHF S2,VHF S5,VHF N4,VHF Z4,VHF R5
Material: Tungsten Steel
Coating: CVD Diamond Coating / PVD Diamond Coating / Diamond Liked Coating / Professional Coating for Emax grinding
Packaging: Individually packing
- Long life span
- Excellent surface quality
- Precise milling performance and results
The dental milling cutters and grinding tools from Vsmile have sophisticated innovative geometries
for machining all material classes: Wax, PMMA, Zirconia, composites, Titanium, CoCr and Glass Ceramics.
Therefore, when it comes to dental tools, you can rely on the sophisticated products by Vsmile : for first-class tool life at best quality and at attractive prices.
