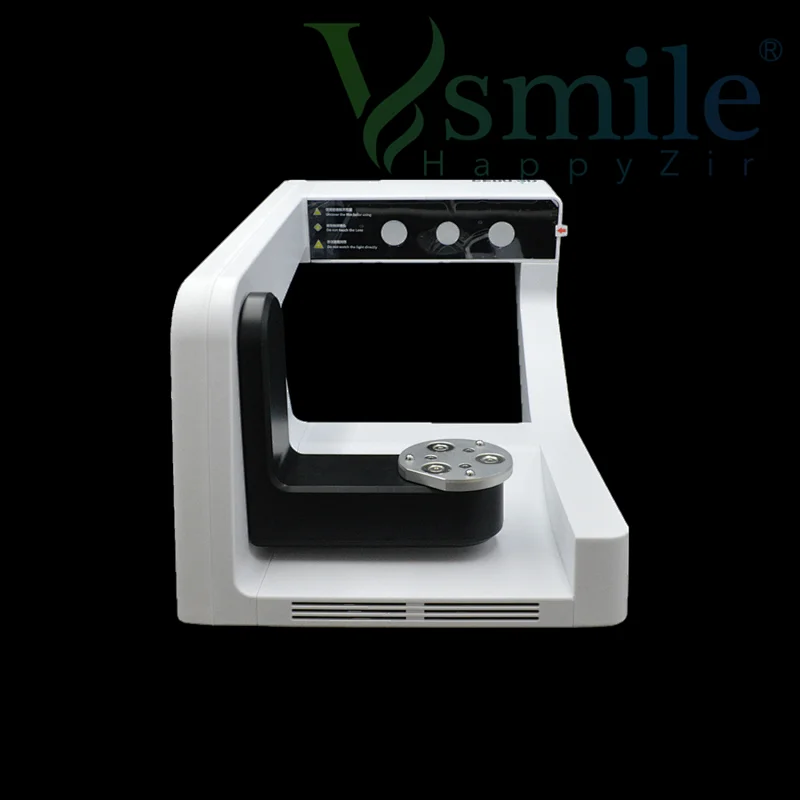

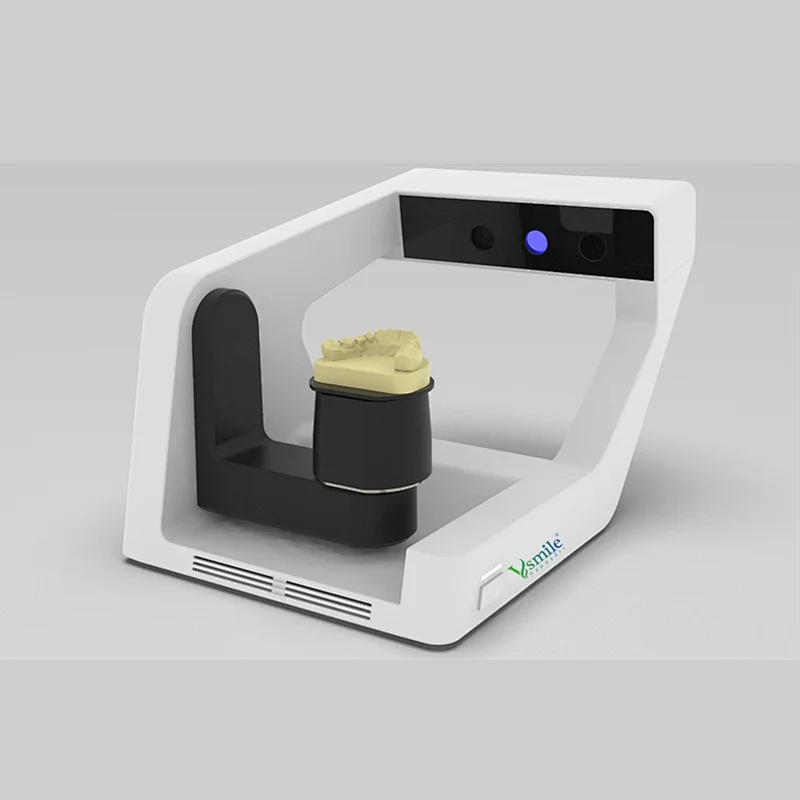

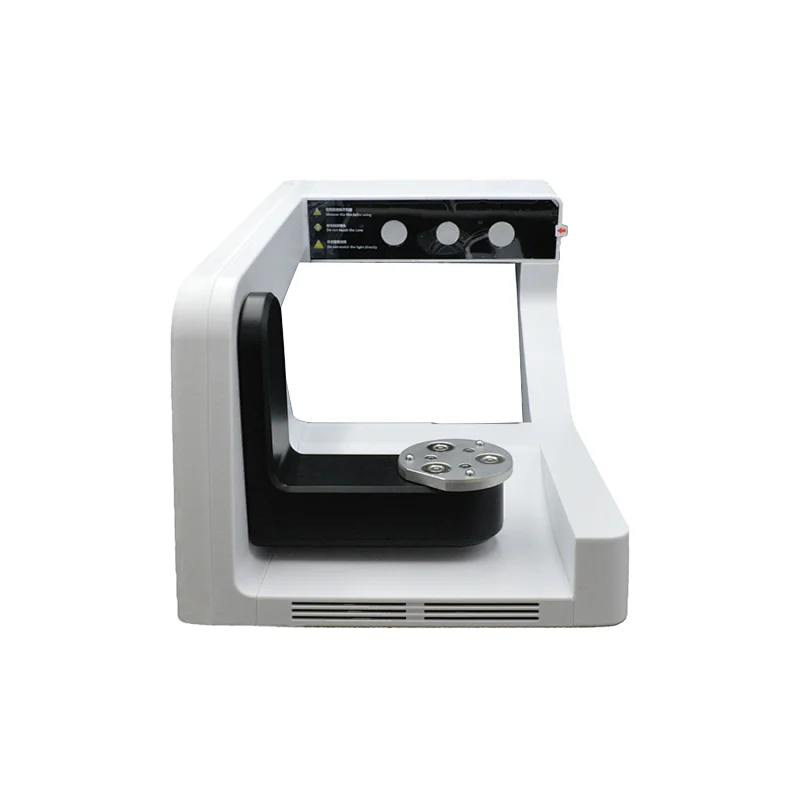

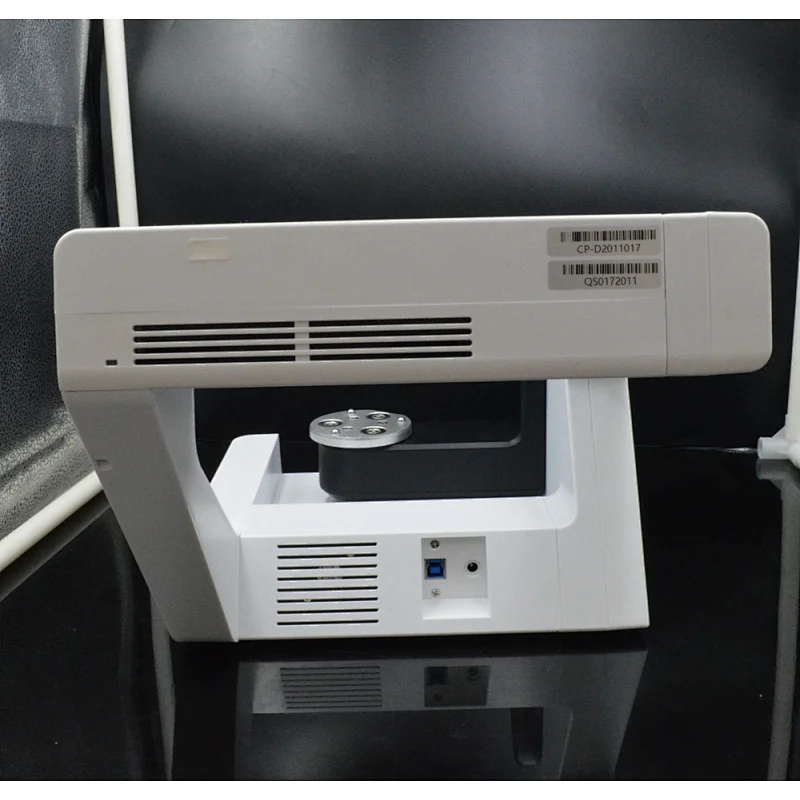

Vsmile AutoScan CS-D100 Dental 3D Scanner
AutoScan-CS-D100 is a multi-functional 3D dental scanner,specializing in data capturing for dental restoration, orthodontics and implantology.
With increased scan speed, a single jaw scan can be finished in 9 seconds. The entire process of a separate-die order can be completed within 2 minutes and a non-separated-die order within 2.5 minutes.
SPECIFICATION
Model | AutoScan-CS-D100 |
Camera Resolution | 2 x 1.3 MP |
Accuracy | <10μm |
Scan Time | 6s for bite scan; 9s for upper/lower jaw scan; 12s for 1-4 dies scan; 21s for 5-8 dies scan; 50s for impression scan |
Output Format | STL，3 shape |
Light Source | Blue light |
Region | 100*100*75mm |
Weight | 5kg without power unit and other accessories |
System required | Win10, 64 bit |
Power Supply | DC24V |
APPLICATIONS
AutoScan-CS-D100 supports multiple dental scan applications, including, abutment, die, plaster model, impression, articulator.
Software
A, scan software include and update free
B, exo software do not include but we can introduce buy from our customer, it is about 500$, all version is available and can be customized.
Packing
Wooden box
Weight: 11.5kg
Computer Requirement
PC Specifications:
--OS: Win10(64bit only)
--Port: A USB3.0 TypeA for data output
A USB2.0(or above)TypeA for the dongle
--GPU: nVidia GTX750 (or above),VRAM 4G(or above)
--CPU: Intel Core i5,Generation 4th (or above)
--RAM: 8G(or above)
--Please closed all the virus defender
Warrant
2 years
How long can use?
It can use 30,000 hours. 8 hours a day 26 days a month, it can use more than 10 years.
